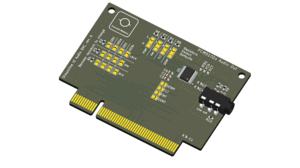

Streamline IO Audio DAC is a Streamline blade containing a TI PCM5102 I2S DAC.
This particular DAC was used for our STM32 Music Player.
Strapping pins
Like most Streamline blades, this board got a number of solder jumpers which can be used to modify the default behavior:

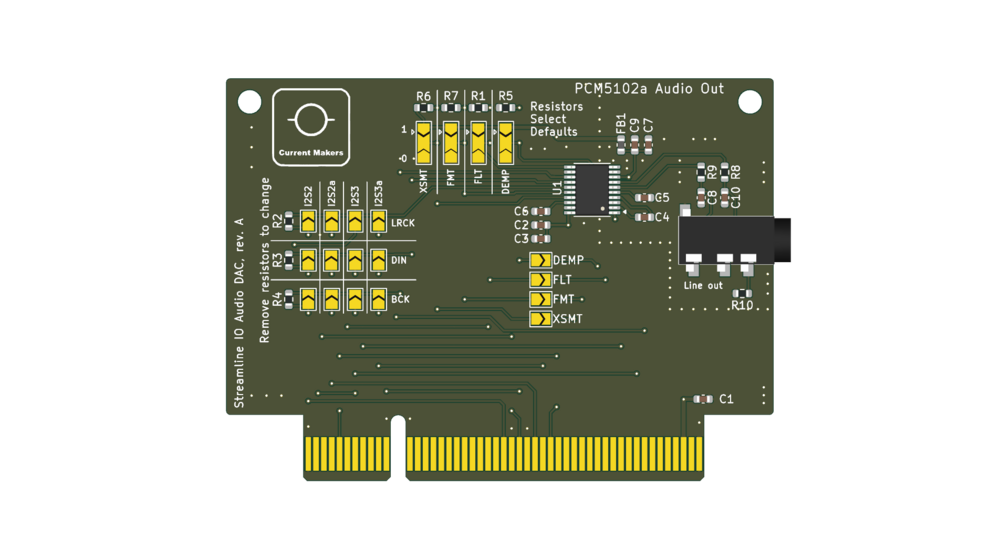

By default, the blade will be connected to I2S2. This can be changed by removing the zero ohm resistors: R2, R3 and R4 and then selecting the appropriate I2S port using the 3, 3-way solder jumpers.
R1, R6, R6 and R7 are strap pins that select the default behavior of the PCM5102a. Remove these and use solder jumpers to select new default behavior.
Schematics
